MINI E 2 pin signal connector

This is the Fool Proof 2 pin waterproof connector,with small diameter and flat shape design.Our standard cable diameter is 3.7mm and 4mm.IP66 of water resistant level.This 2 pin connector is made of high-density material which is very good balance of hardness and flexibility.
Availability:
Quantity:
Inquire Add to Basket

sharethis sharing button

  • HT-F-MINI E

Rated Voltage
48V
Rated Current2A
Withstanding Voltage500V
Insulation Resistance≥20MΩ
Contact Resistance≤10mΩ
Mating TypeInsertion Force:80N Max,Extraction 30N Min
Mating Cycles200Times
Operation Temperature-25℃~+80℃
Protection DegreeIP66
External Diameter9mm
Mating Length49.3mm
Contact MaterialCopper alloy plated with gold which conforms to military standard
Wire Section0.20mm²

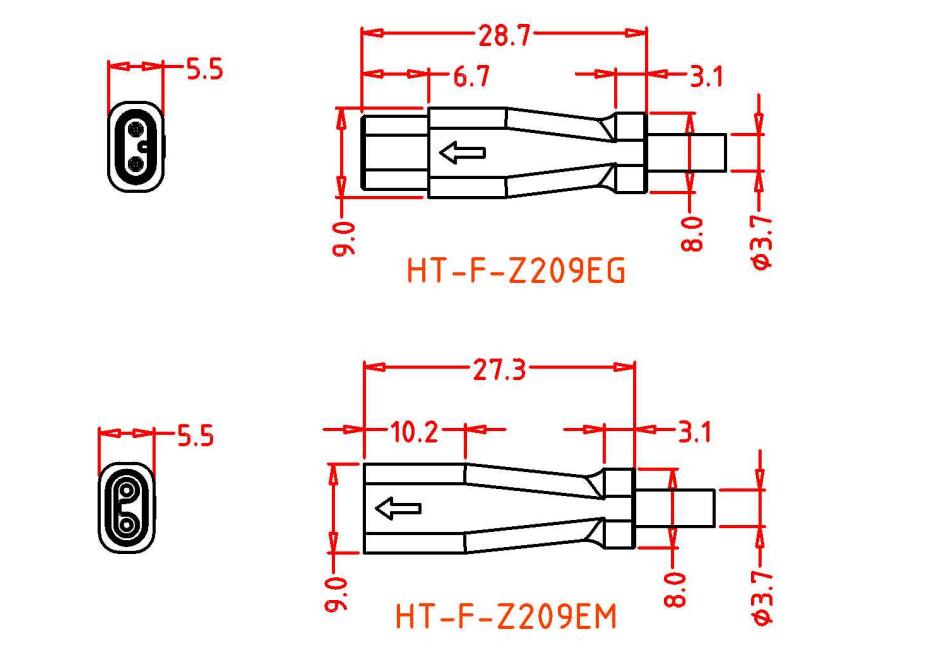

2pin signal shape
