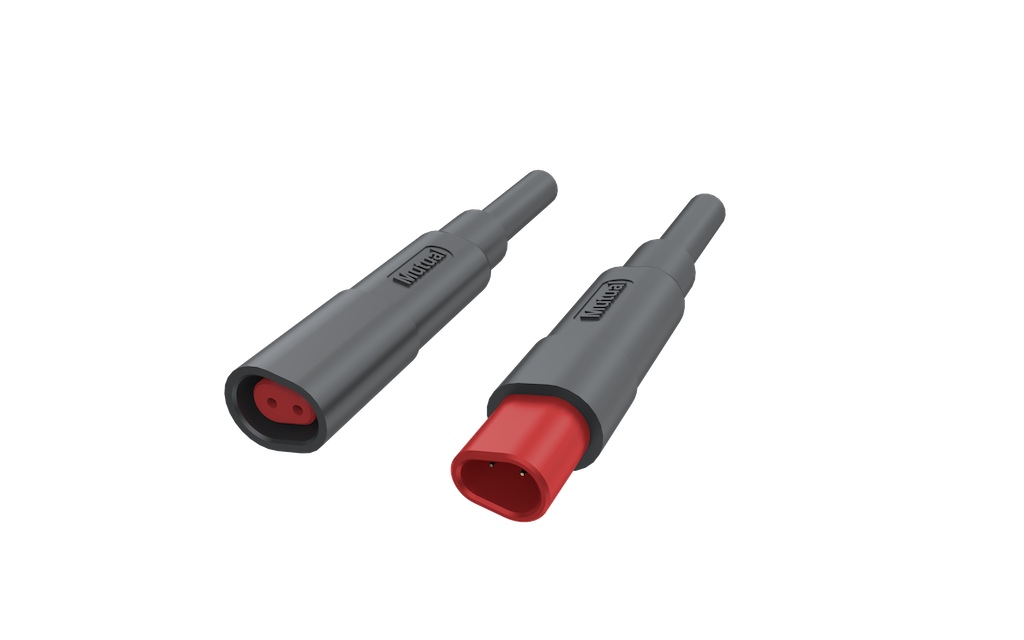

MINI J 2 pin signal connector

This is a third generation of waterproof quick disconnect wire connectors,it is designed based on Signal MINI D.Which makes a different shape connectors.Can be used in conditions which needs the connector samller size but with same current capacity and blind mate conditions.
Availability:
Quantity:
Inquire Add to Basket

sharethis sharing button

  • HT-F-MINI J

Rated Voltage
48V
Rated Current2A
Withstanding Voltage500V
Insulation Resistance≥20MΩ
Contact Resistance≤10mΩ
Mating TypeInsertion Force:80N Max,Extraction 30N Min
Mating Cycles200Times
Operation Temperature-25℃~+80℃
Protection DegreeIP66
External Diameter7.9mm
Mating Length55mm
Contact MaterialCopper alloy plated with gold which conforms to military standard
Wire Section0.14mm²/0.20mm²

special shaped connector
