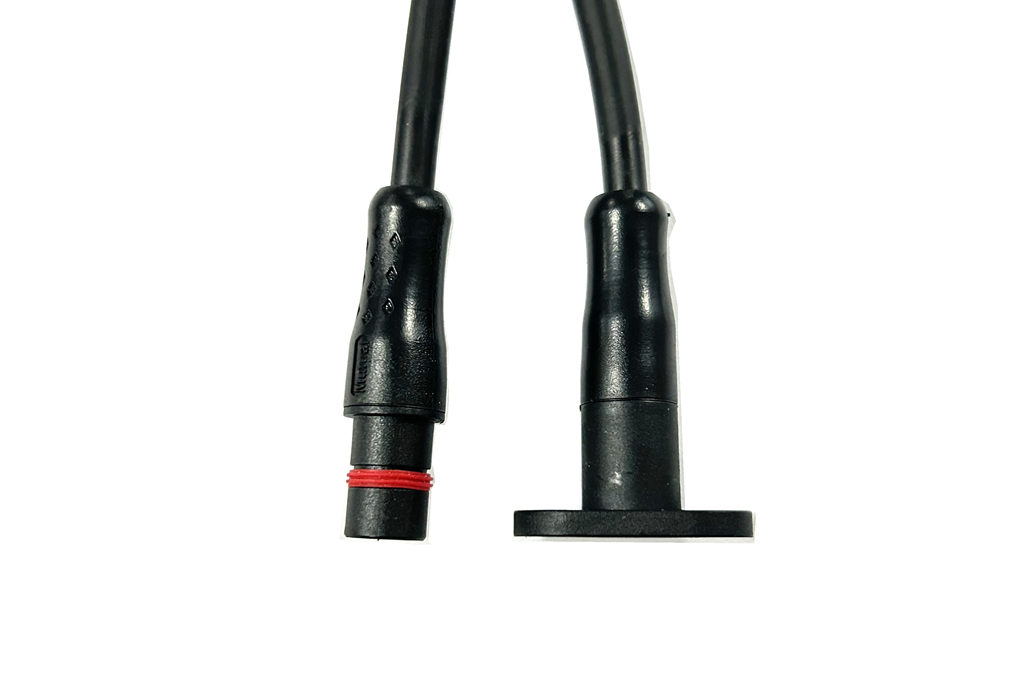

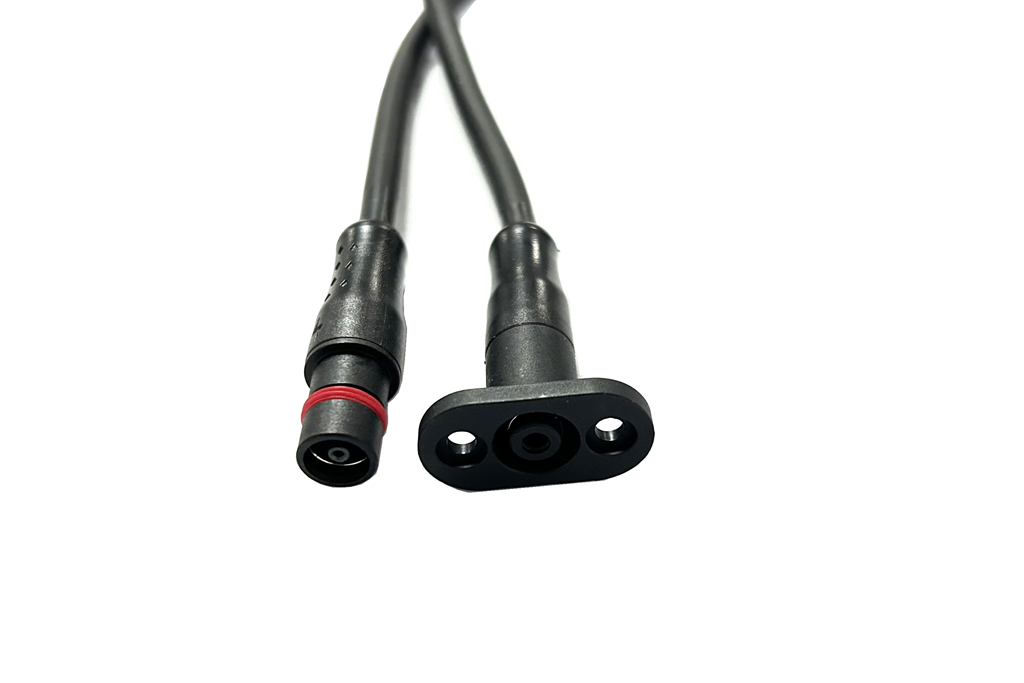

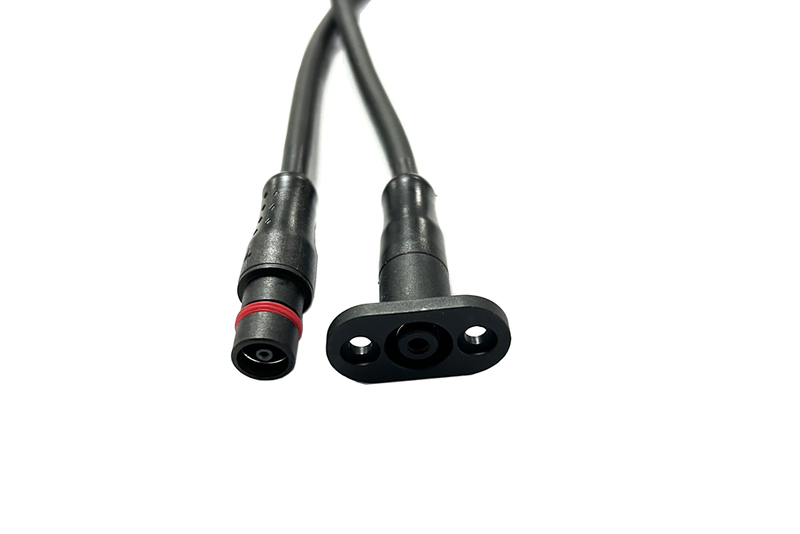

Z212C DC Battery connector

This is the panel mount battery DC connector,plug-in&out can be 2000 times.
Availability:
Quantity:
Inquire Add to Basket

sharethis sharing button

  • HT-F-Z212C

Rated Voltage
48V/60V
Rated Current10A
Withstanding Voltage500V
Insulation Resistance≥20MΩ
Contact Resistance≤10mΩ
Insertion/Extraction force40N.m Max 10N.m Min
Mating Cycles2000Times
Operation Temperature-25℃~+80℃
Protection DegreeIP67
Locating partPA66+30%GF UL94-V0 Black
Wire Section0.82mm²

212C DC connector
