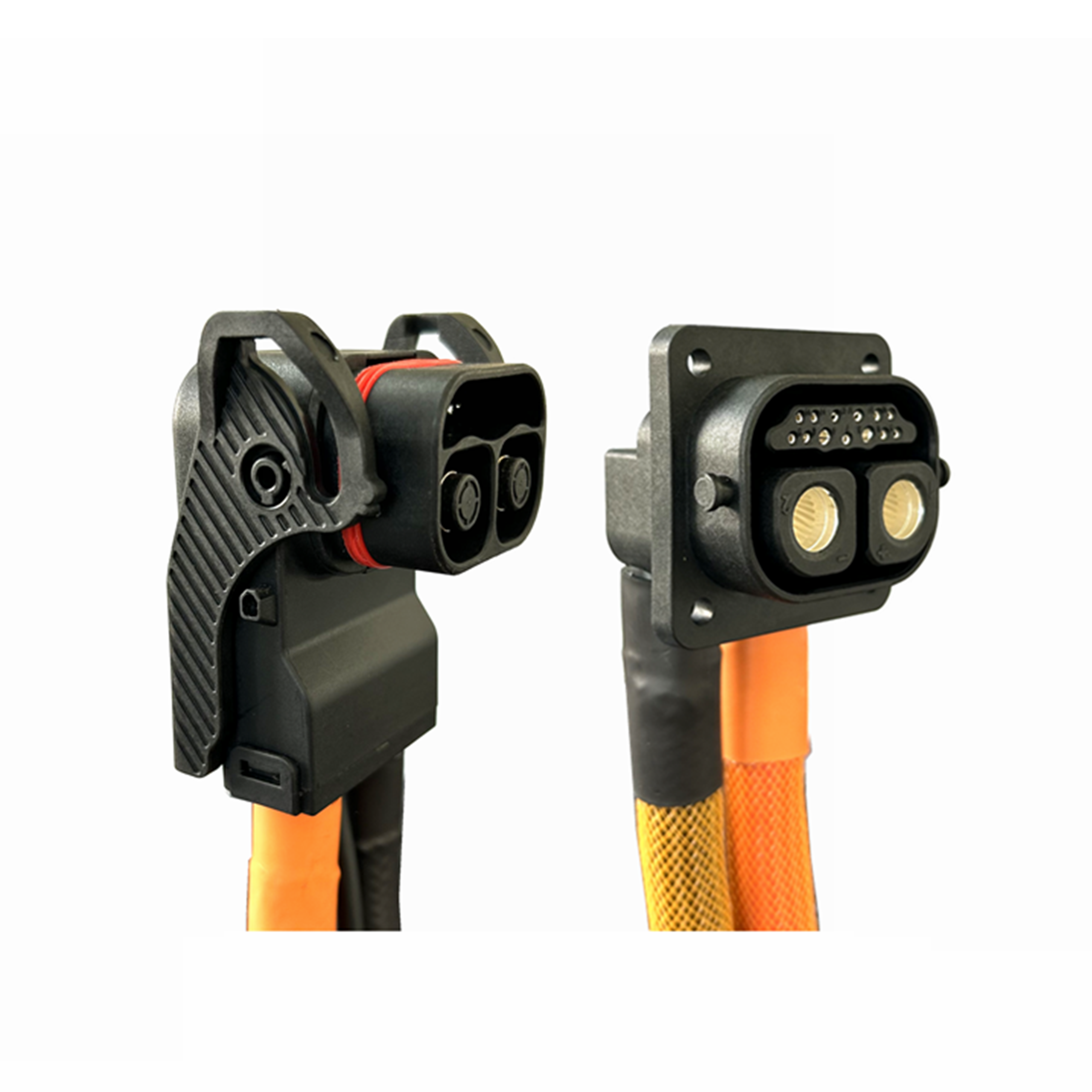

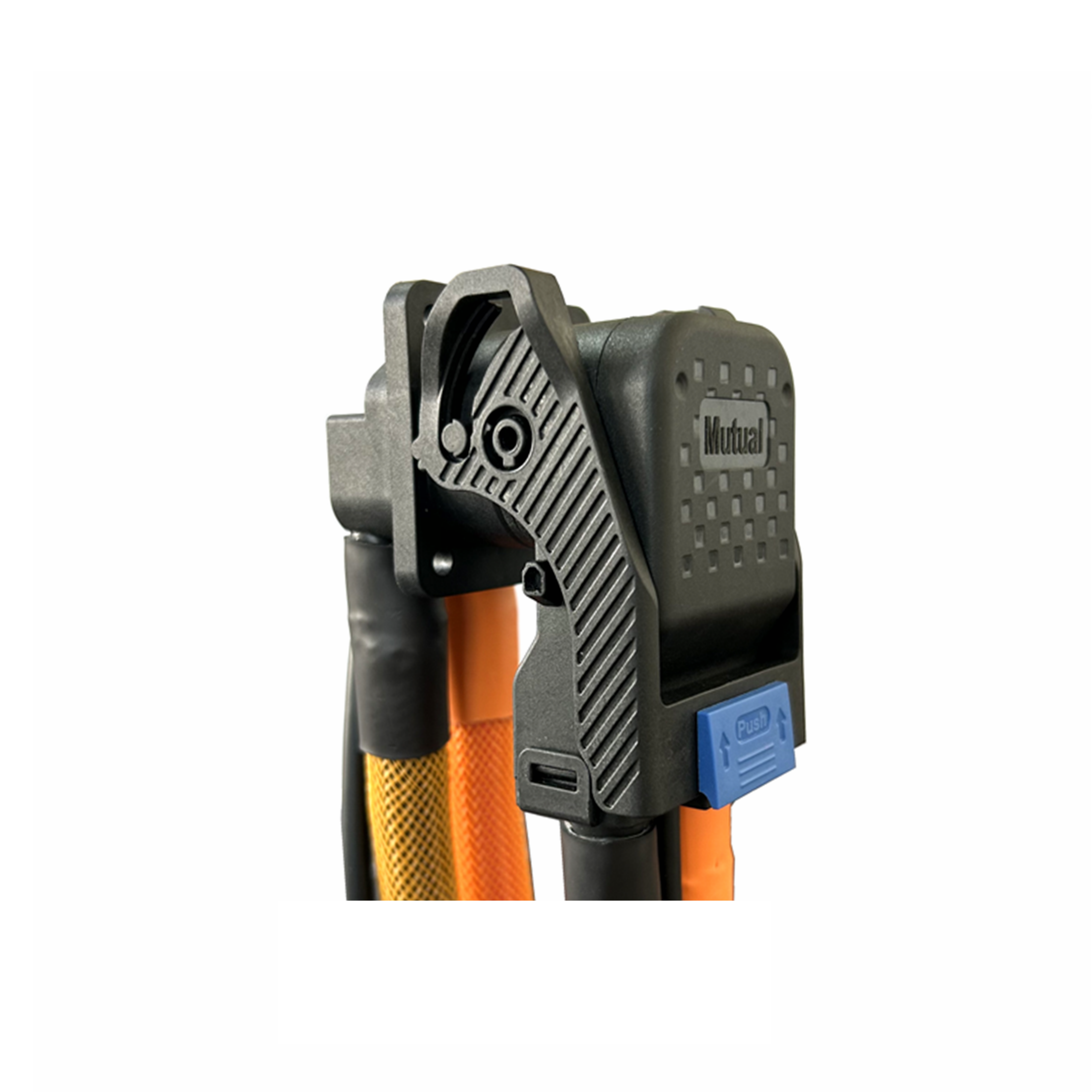

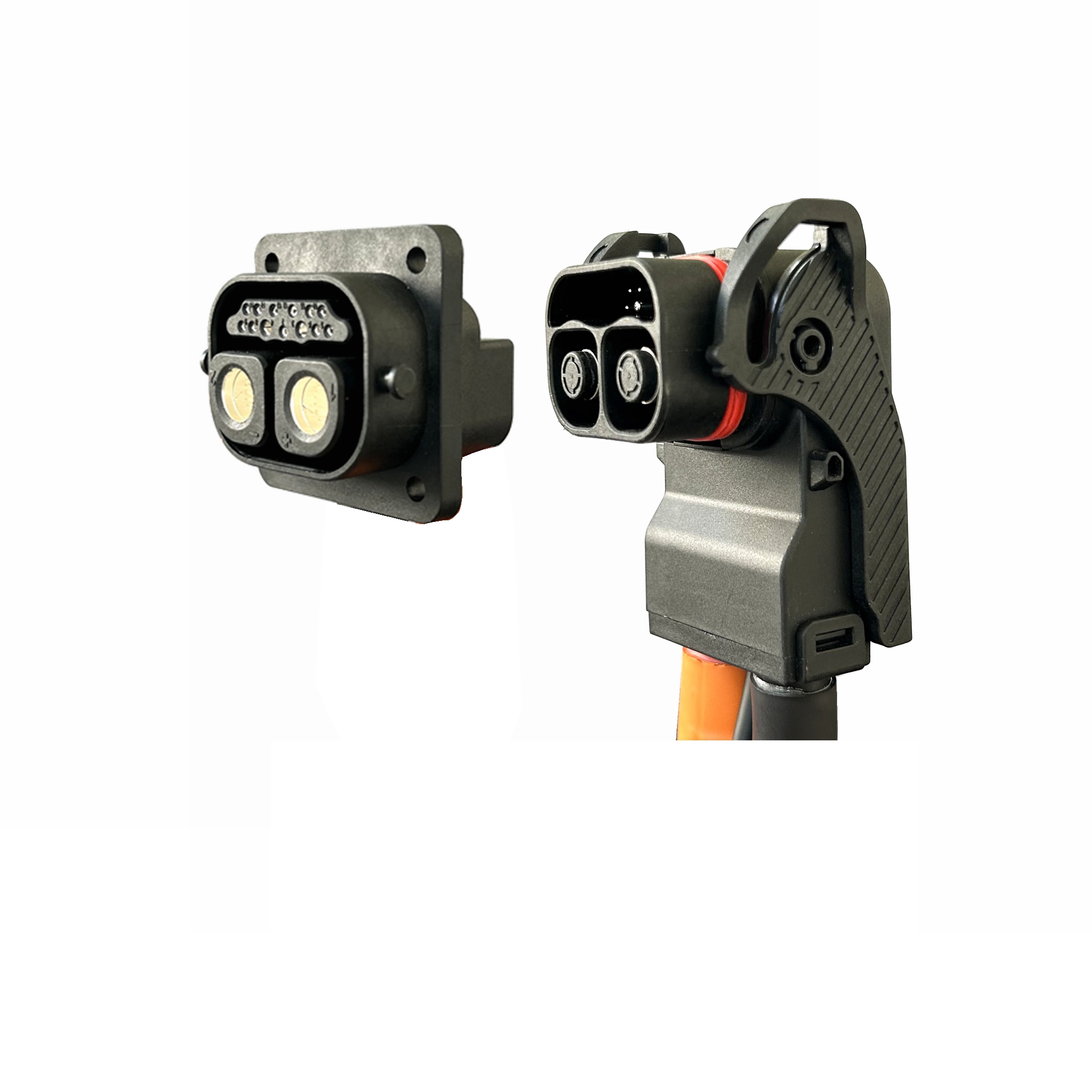

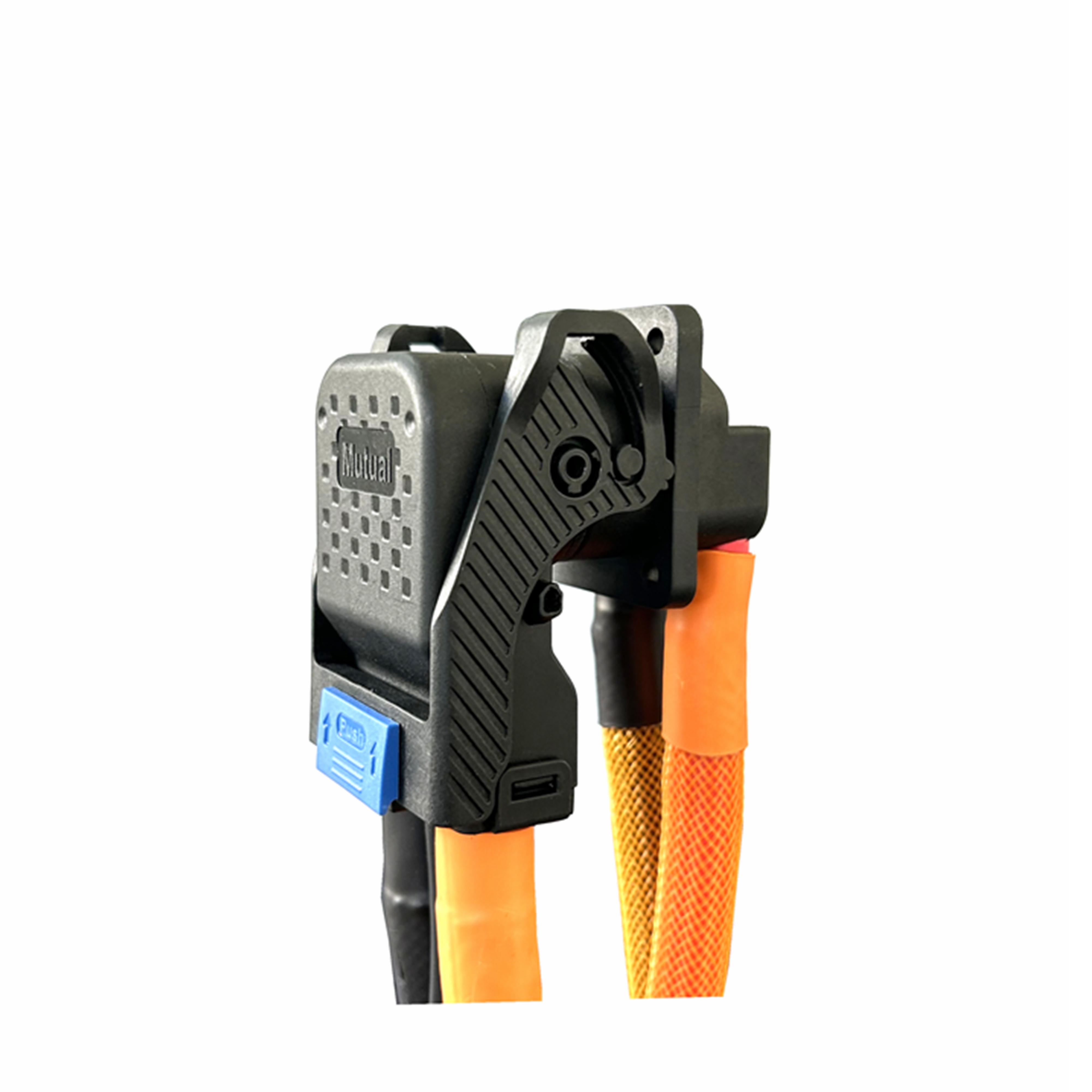

Z1543 200Amp 15 pin Quick locking Battery connector

This 15 pin panel mount battery connector which is rated with 2 pin(200Amp) + 2 pin(10Amp)+11 pin(5Amp) designed with fast locking and un-locking.
Availability:
Quantity:
Inquire Add to Basket

sharethis sharing button

  • Z1543A

Rated Voltage
0-96V
Rated Current200A/10A/5A
Withstanding Voltage700V
Insulation Resistance≥20MΩ
Contact Resistance≤10mΩ
Mating TypeScrew locking
Mating Cycles3000Times
Operation Temperature-25℃~+80℃
Protection DegreeIP67
External Diameter73.1x52.4x50mm
Mating Length68mm
Contact MaterialNylon PA66+30% fiberglass
Wire Section
