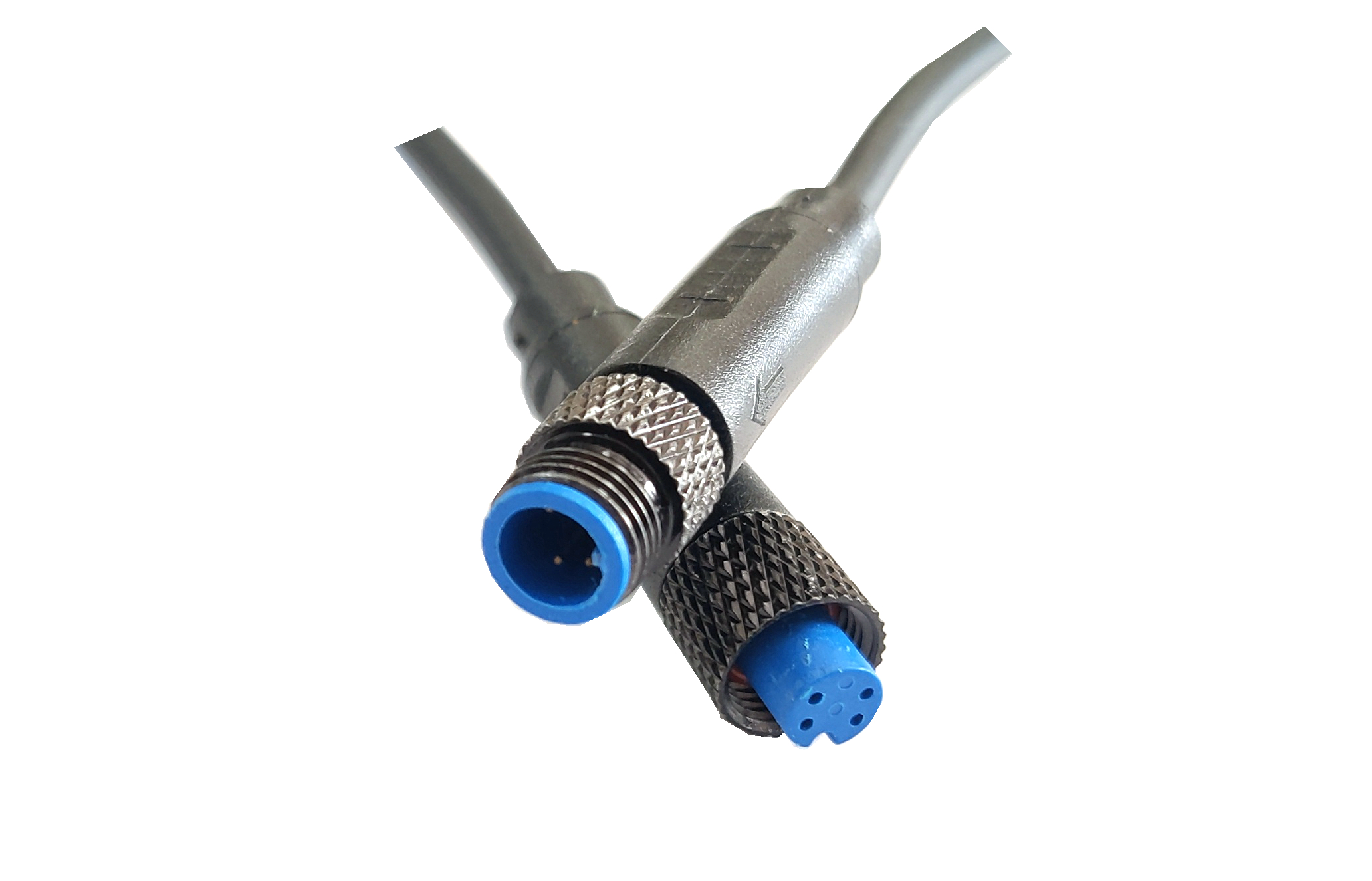

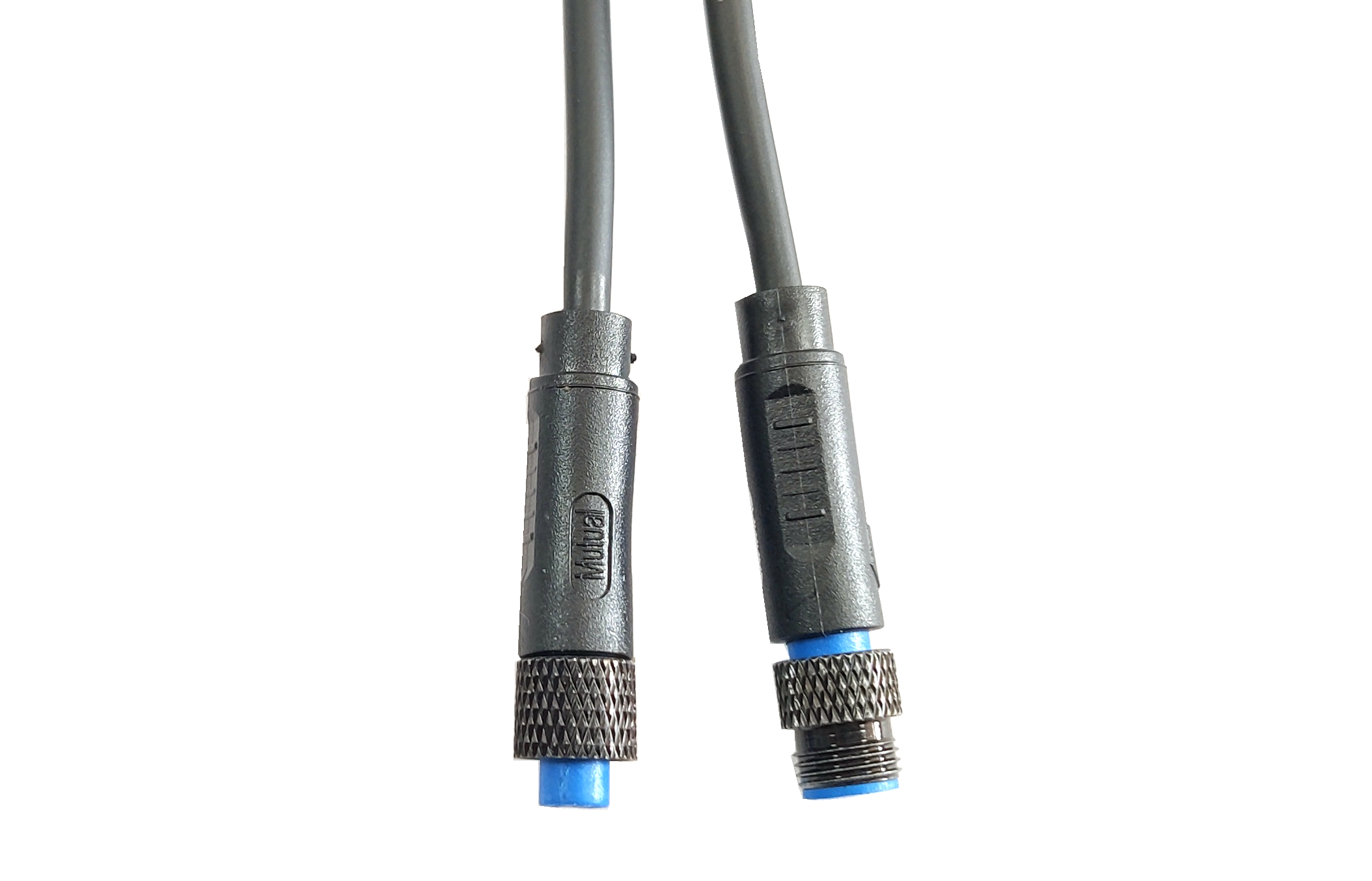

MINI C screw locking 4 pin signal connector

The 4 pin screw locking waterproof wire connector which makes the connection between male connector and female connector more durable,water resistant electrical connectors with IP67 level of waterproof ability and high density&flexibility makes it to be the best waterproof wire connectors.The plug and socket connectors for example of the 4 pin connector,it can be used as 4 pin to 4 pin extension connector and 4 pin led connector.

Quantity:
  • HT-F-MINI C
Rated Voltage
48V
Rated Current2A
Withstanding Voltage500V
Insulation Resistance≥20MΩ
Contact Resistance≤10mΩ
Mating TypeScrew locking
Mating Cycles200Times
Operation Temperature-25℃~+80℃
Protection DegreeIP67
External Diameter8.5mm
Mating Length68.8mm
Contact MaterialCopper alloy plated with gold which conforms to military standard
Wire Section0.14mm²/0.20mm²
