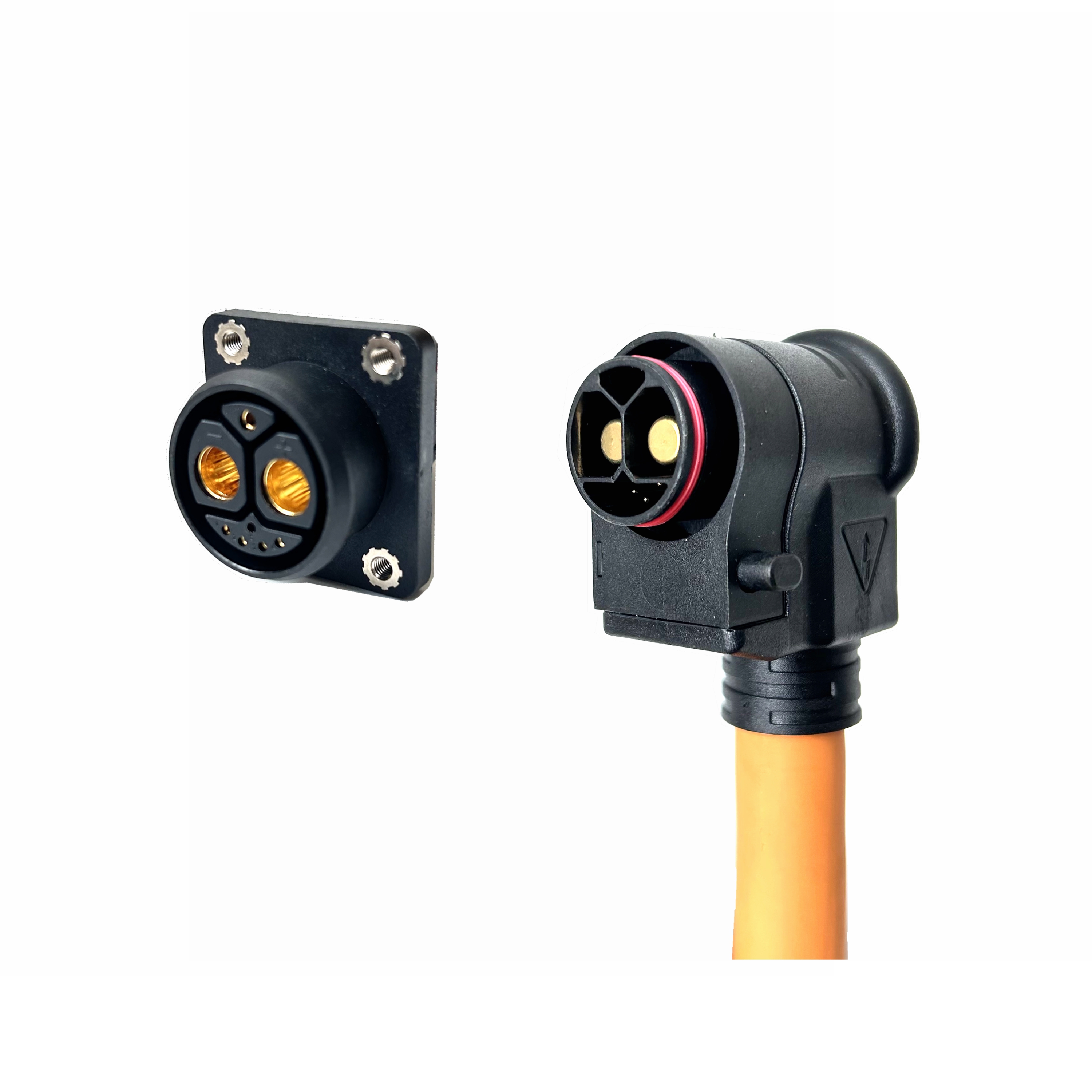

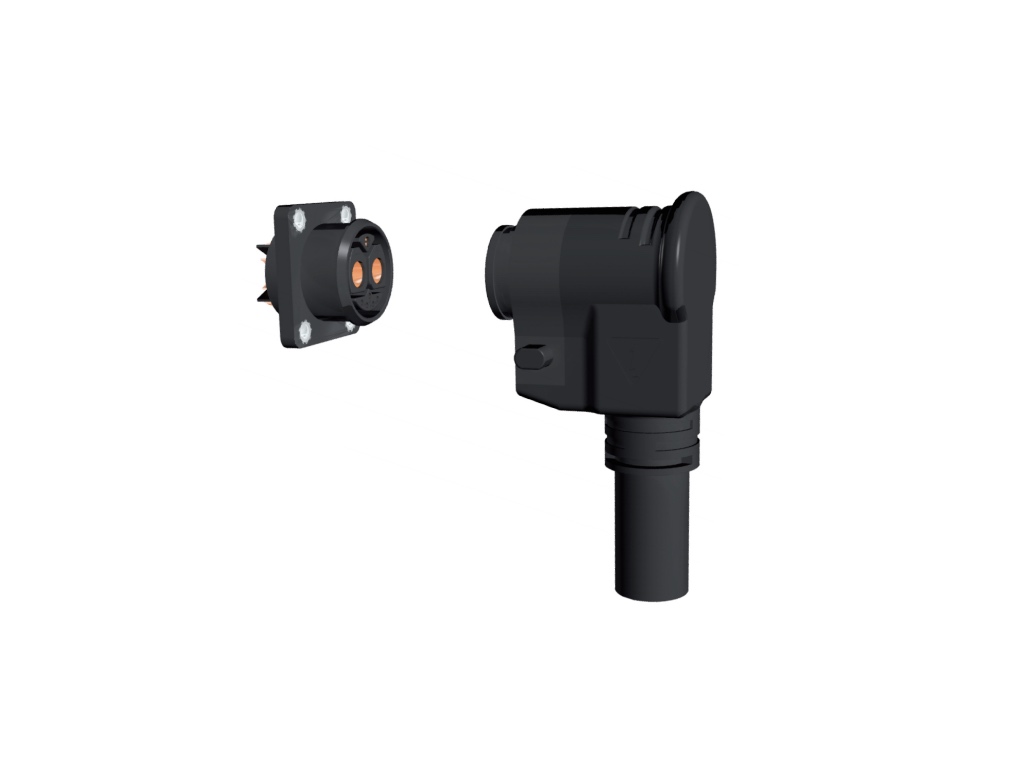

Z835A 48V/60V 80Amp Panel Mount 8 pin Battery connector

This is 8 pin panel mount battery connector which is applied with 48V/60V voltage 2 pin(80Amp) + 6 pin(5Amp),and 2000 times using life with IP66 protection degree.
Availability:
Quantity:
Inquire Add to Basket

sharethis sharing button

  • HT-F-Z835A 8 pin(2+6)

Rated Voltage
48V/60V
Rated Current80A/5A
Withstanding Voltage700V 2mA 0.05s
Insulation Resistance≥20MΩ
Contact Resistance≤10mΩ
Mating TypeInsertion Force:80N Max,Extraction 20N Min
Mating Cycles2000Times
Operation Temperature-25℃~+80℃
Protection DegreeIP66
External DiameterMale 61.3mm,female 29.1mm
Contact Material Male:GB HPB-62-1 Gold plated   Female:GB QSN6.5-0.1 Gold plated
Locating partPA66+30%GF UL94-V0 Black
Wire Section8.0mm²+0.34mm²

835A battery put
