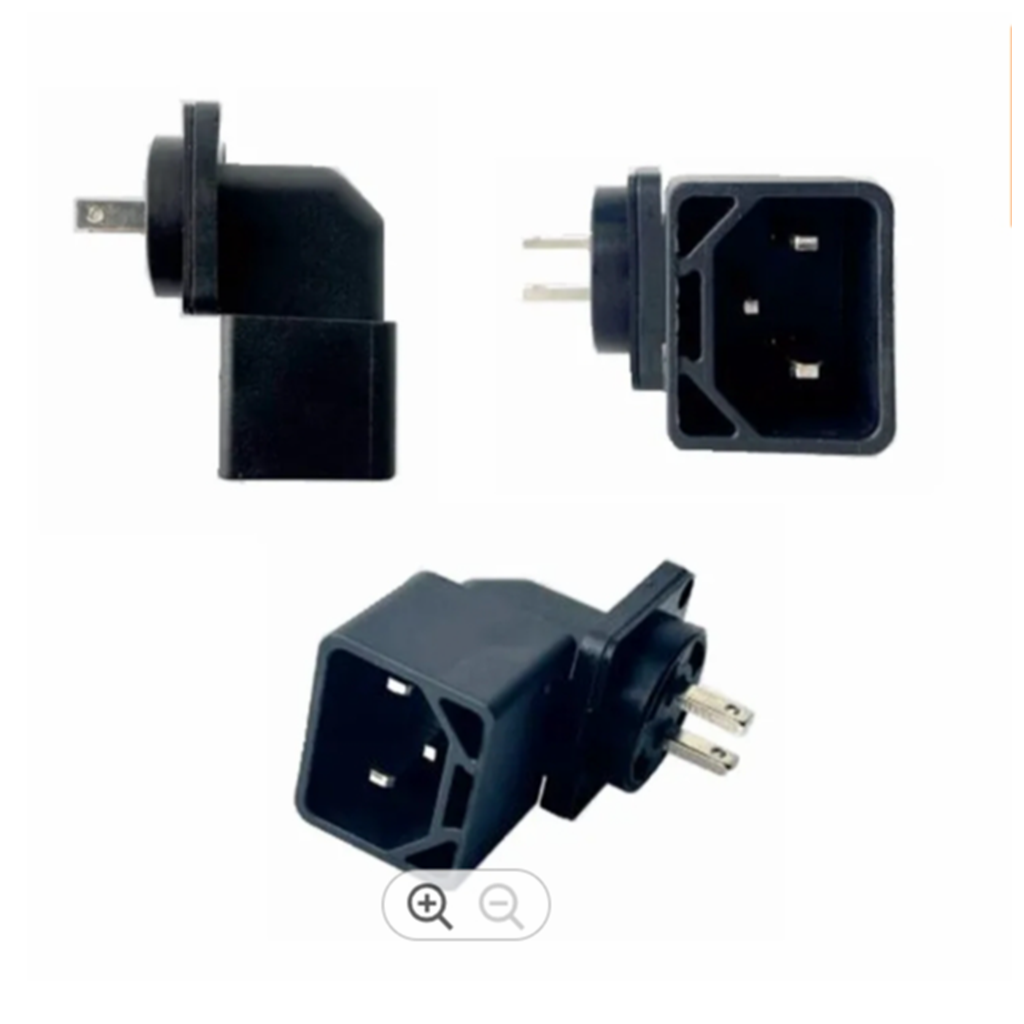

Z328A 3pin Liner Battery connector panel mount

This is3 pin battery liner panel mount battery connector, can be rated 30Amp current.
Availability:
Quantity:
Inquire Add to Basket

sharethis sharing button

  • HT-F-Z328A

Rated Voltage
48V/60V
Rated Current30A
Withstanding Voltage700V 2mA 0.05S
Insulation Resistance≥20MΩ
Contact Resistance≤10mΩ
Mating TypePanel mount/liner
Mating Cycles2000Times
Insertion Force40N Max,Extraction 10N Min
Operation Temperature-25℃~+80℃
Product Material,Contact elementMale:GB HPB-62-1 Nickel-plated.Female:GB QSN6.5-0.1 Nickel-plated/
Locating partPA66+30%GF UL94-V0 Black
Wire Section2.0mm²+0.2mm²

328

Previous:
Next:
HT-F-Z328A Panel mount bike charger connector e bike charger connector Liner 3pin charging terminal 3pin ebike 30Amp 3pin power connector male and female panel
