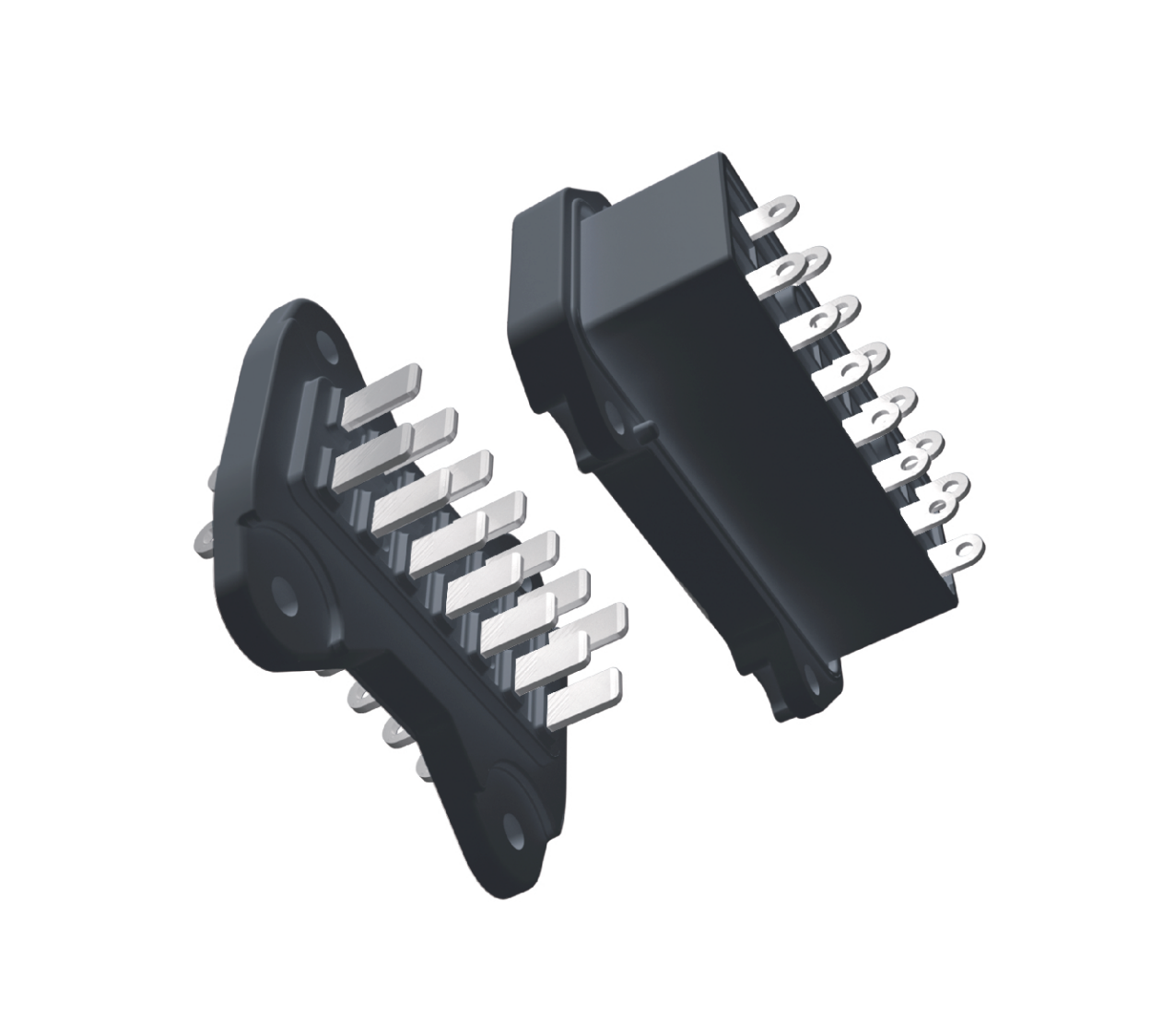

Z1460A 14 pin Liner Battery connector panel mount

This is 14 pin battery liner panel mount battery connector, can be rated 25Amp current.IP67.
Availability:
Quantity:
  • HT-F-Z1460A
Rated Voltage
48V/60V
Rated Current25A
Withstanding Voltage700V 2mA 0.05S
Insulation Resistance≥20MΩ
Contact Resistance≤10mΩ
Mating TypePanel mount/liner
Mating Cycles3000Times
Insertion Force120N Max,Extraction 50N Min
Operation Temperature-25℃~+80℃
Protection DegreeIP67
External Diameter60x40mm
Mating Length46mm
Product Material,Contact elementMale:GB HPB-62-1 Nickel-plated.Female:GB QSN6.5-0.1 Nickel-plated/
Locating partPA66+30%GF UL94-V0 Black
Wire Section2.0mm²

14pin liner panel mount power port
