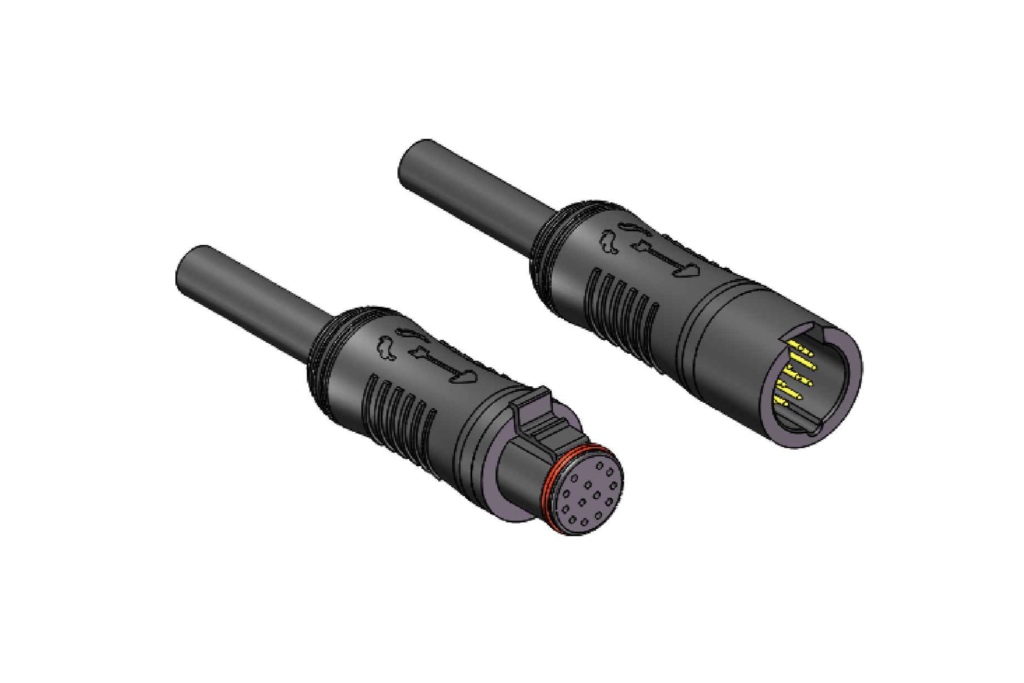

Z1314A main cable 13 pin signal connector

Multiple cable signal connector 13 pin integrated IP67, waterproof quick plug male and female connector.
Availability:
Quantity:
Inquire Add to Basket

sharethis sharing button

  • HT-F-Z1314A

Rated Voltage
48V/60A
Rated Current2A
Withstanding Voltage500V/2mA/0.05S
Insulation Resistance≥20MΩ
Contact Resistance≤10mΩ
Mating TypeInsertion Force:80N Max,Extraction 30N Min
Mating Cycles200Times
Operation Temperature-25℃~+80℃
Protection DegreeIP67
External Diameter14mm
Mating Length72.6mm
Contact Material MaleMale:GB HPB-62-1 Gold-plated,Female:GB QSN6.5-0.1 Gold-plated
Locating PartPBT+30%GF UL94-V0 Black
Wire Section0.14mm²/0.20mm²

13pin signal cable harness 2A
