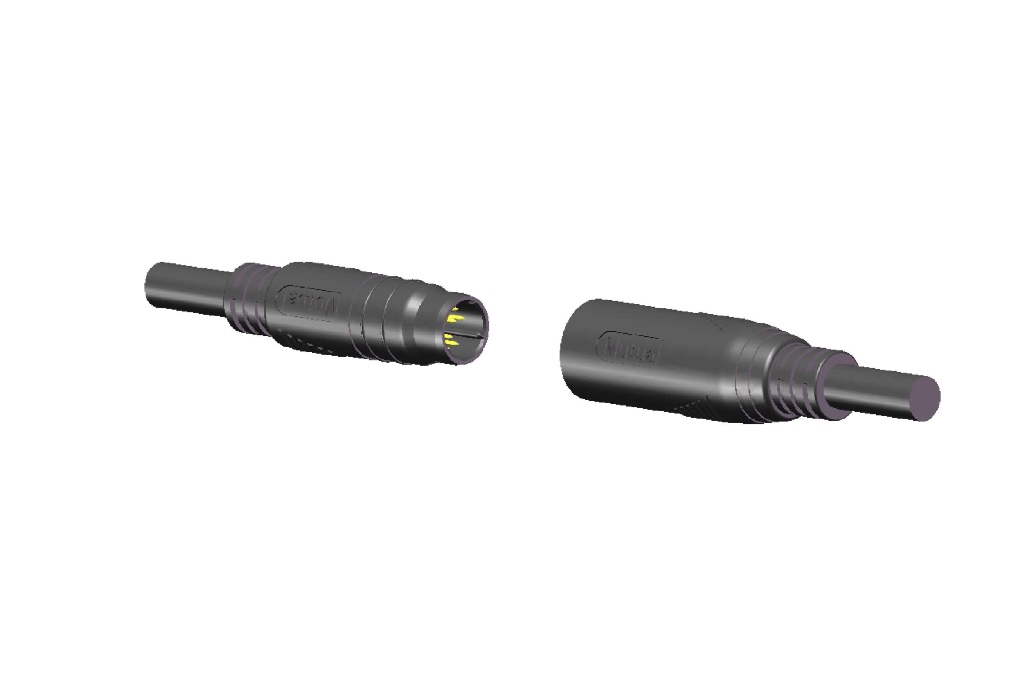

Z1113A main cable 11 pin signal connector

Main cable signal connector 11 pin integrated, waterproof quick plug male and female connector.
Availability:
Quantity:
Inquire Add to Basket

sharethis sharing button

  • HT-F-Z1113A

Rated Voltage
48V/60A
Rated Current2A
Withstanding Voltage500V/2mA/0.05S
Insulation Resistance≥20MΩ
Contact Resistance≤10mΩ
Mating TypeInsertion Force:80N Max,Extraction 30N Min
Mating Cycles200Times
Operation Temperature-25℃~+80℃
Protection DegreeIP66
External Diameter13mm
Mating Length66mm
Contact Material MaleMale:GB HPB-62-1 Gold-plated,Female:GB QSN6.5-0.1 Gold-plated
Locating PartPBT+30%GF UL94-V0 Black
Wire Section0.14mm²/0.20mm²

11pin intergrated connector IP66 cable harness
