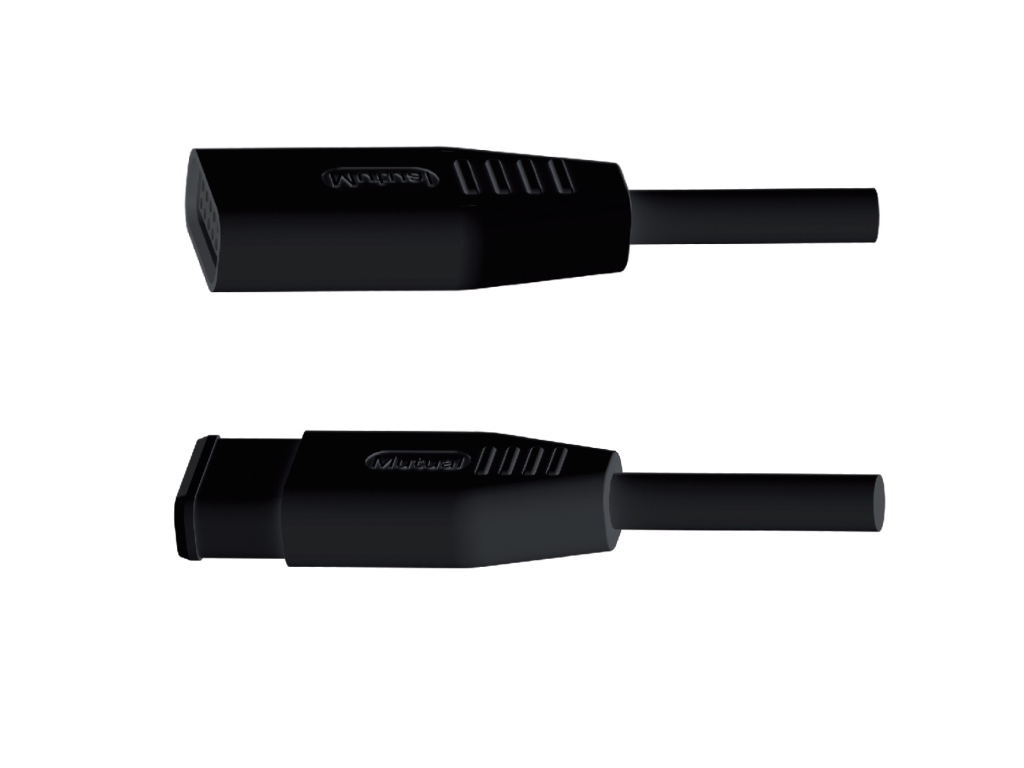

Z1112A main cable 11 pin signal connector Square shape

Main cable signal connector 11 pin integrated square shape, waterproof quick plug male and female connector.
Availability:
Quantity:
sharethis sharing button
  • HT-F-Z1112A

Rated Voltage
48V/60A
Rated Current2A
Withstanding Voltage500V/2mA/0.05S
Insulation Resistance≥20MΩ
Contact Resistance≤10mΩ
Mating TypeInsertion Force:60N Max,Extraction 20N Min
Mating Cycles200Times
Operation Temperature-25℃~+80℃
Protection DegreeIP66
Mating Length57.2mm
Contact Material MaleMale:GB HPB-62-1 Gold-plated,Female:GB QSN6.5-0.1 Gold-plated
Locating PartPBT+30%GF UL94-V0 Black
Wire Section0.14mm²

1112A 11pin connector harness
