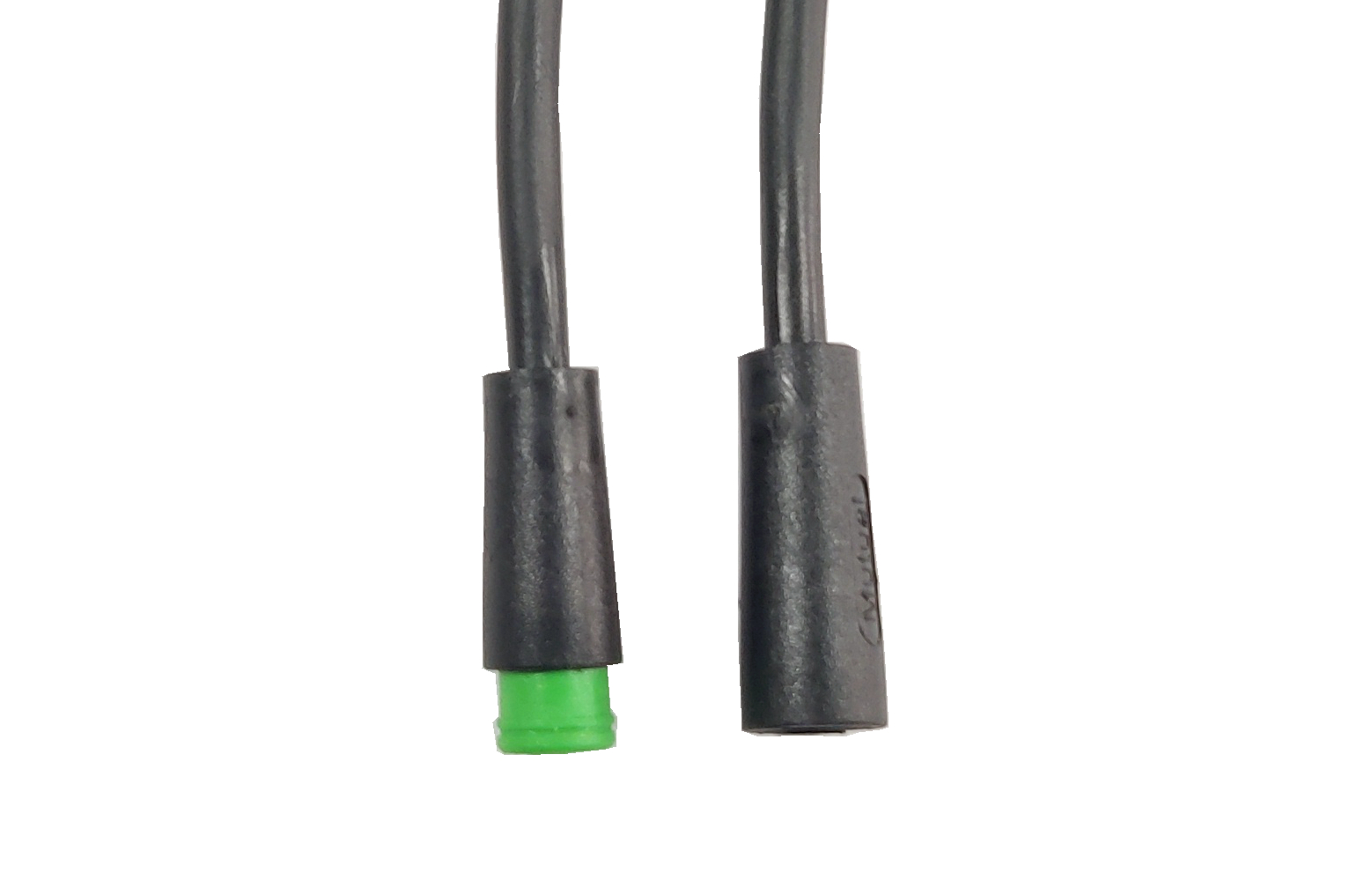

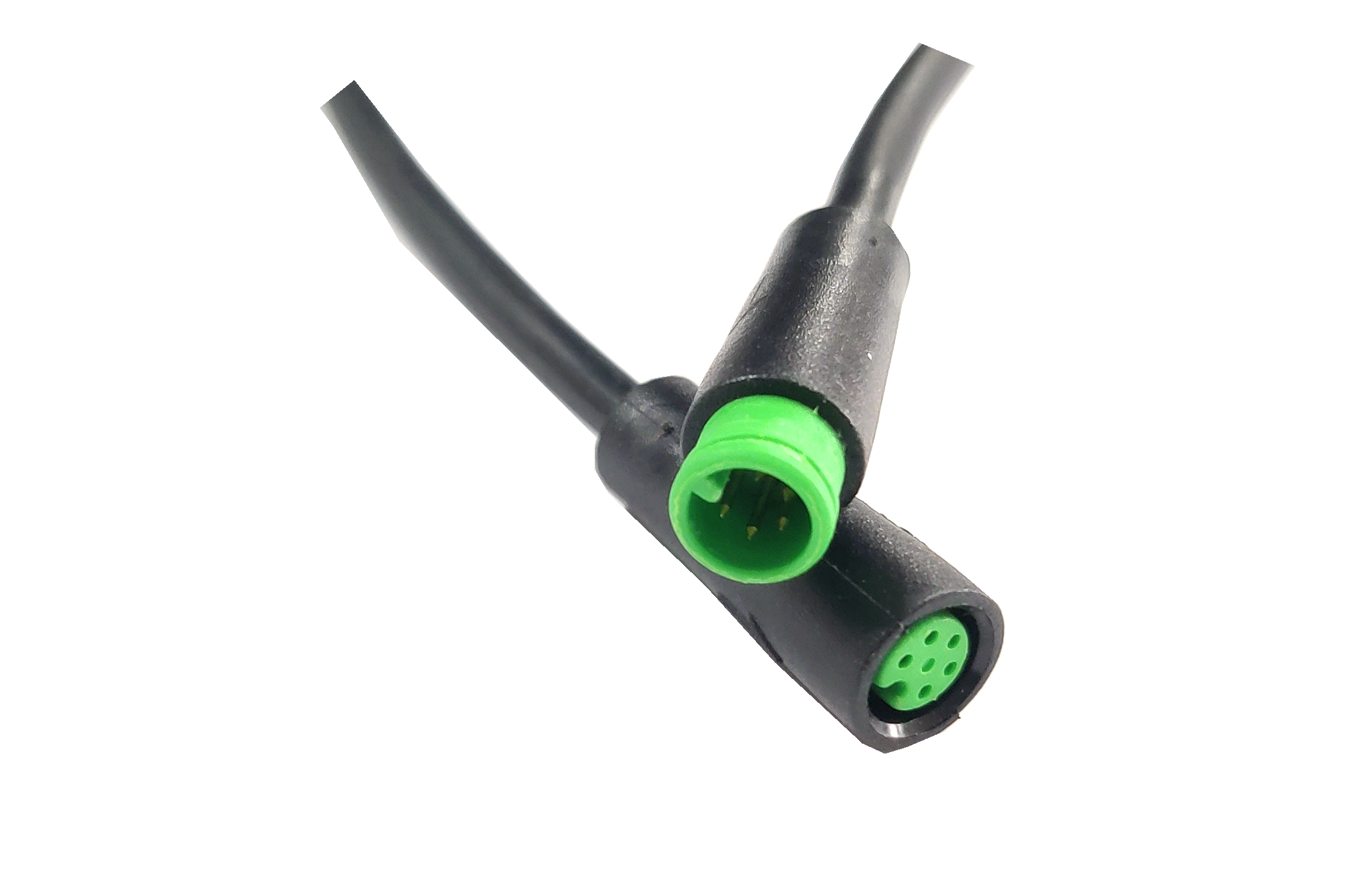

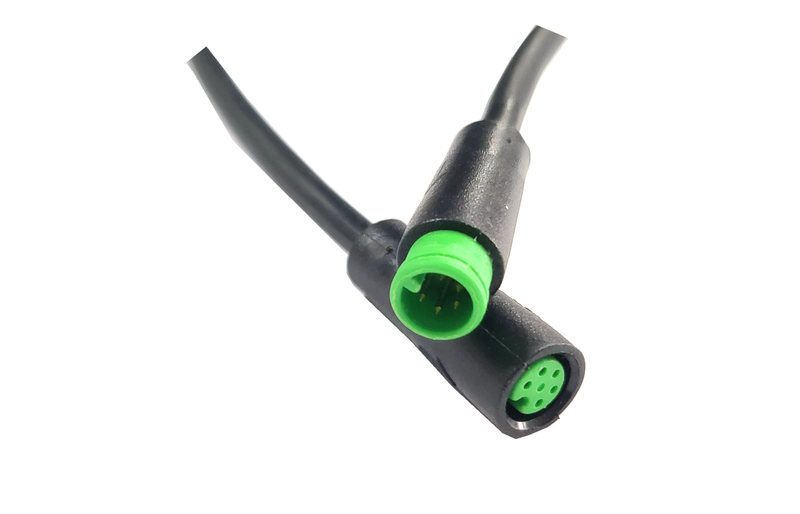

MINI D 5 pin signal connector

This is a new generation Fool Proof of waterproof quick disconnect wire connectors 5 pin,it is designed based on Signal MINI B.The new MINI D connector length is much shorter than last versions which is only 22mm.Can be used in conditions which needs the connector samller size but with same current capacity.
Availability:
Quantity:
Inquire Add to Basket

sharethis sharing button

  • HT-F-MINI D

Rated Voltage
48V
Rated Current2A
Withstanding Voltage500V
Insulation Resistance≥20MΩ
Contact Resistance≤10mΩ
Mating TypeInsertion Force:80N Max,Extraction 30N Min
Mating Cycles200Times
Operation Temperature-25℃~+80℃
Protection DegreeIP66
External Diameter8.5mm
Mating Length39mm
Contact MaterialCopper alloy plated with gold which conforms to military standard
Wire Section0.14mm²/0.20mm²

16944542214910

Previous:
Next:
Signal MINI D 5 pin Ebike controller connectors Ninebot cable connector Okai cable connector 5 wire waterproof connector 5 pin electrical connector 5 pin led connector 5 pin waterproof plug and socket
