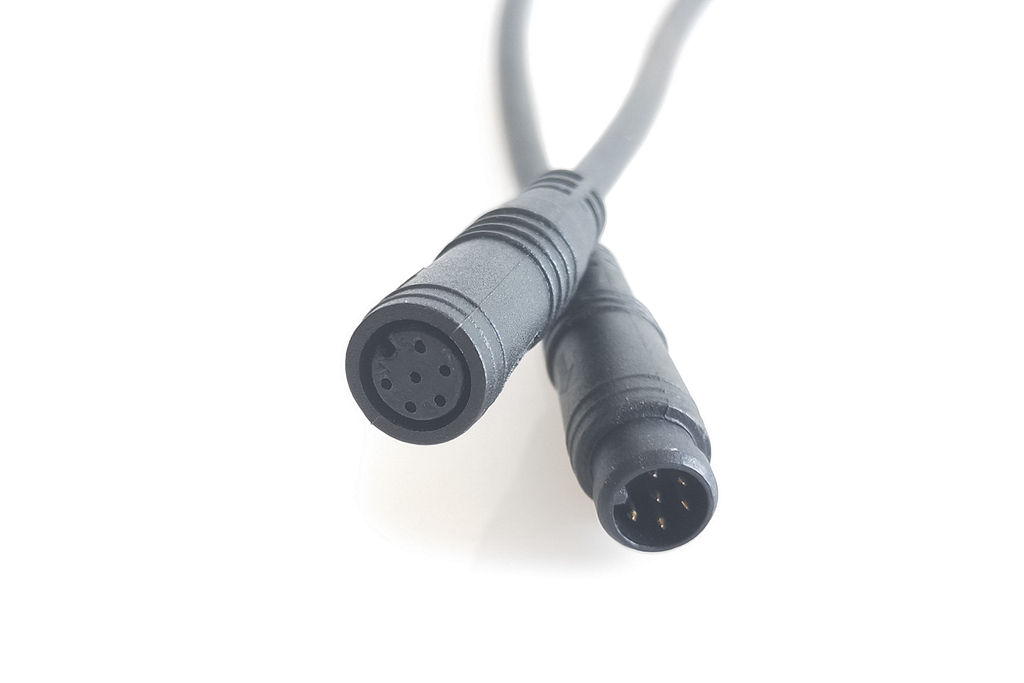

MINI B 6 pin signal connector

This is the Fool Proof 6 pin waterproof connector,with small diameter It can be custom as extention cable,Y splitter for ebike usages and many other designs.Our standard cable diameter is 3.7mm and 4mm.IP66 of water resistant level.
Availability:
Quantity:
Inquire Add to Basket

sharethis sharing button

  • HT-F-MINI B

Rated Voltage
48V
Rated Current2A
Withstanding Voltage500V
Insulation Resistance≥20MΩ
Contact Resistance≤10mΩ
Mating TypeInsertion Force:80N Max,Extraction 30N Min
Mating Cycles200Times
Operation Temperature-25℃~+80℃
Protection DegreeIP66
External Diameter9mm
Mating Length62mm
Contact MaterialCopper alloy plated with gold which conforms to military standard
Wire Section0.14mm²/0.20mm²

18102322162251056952215067
