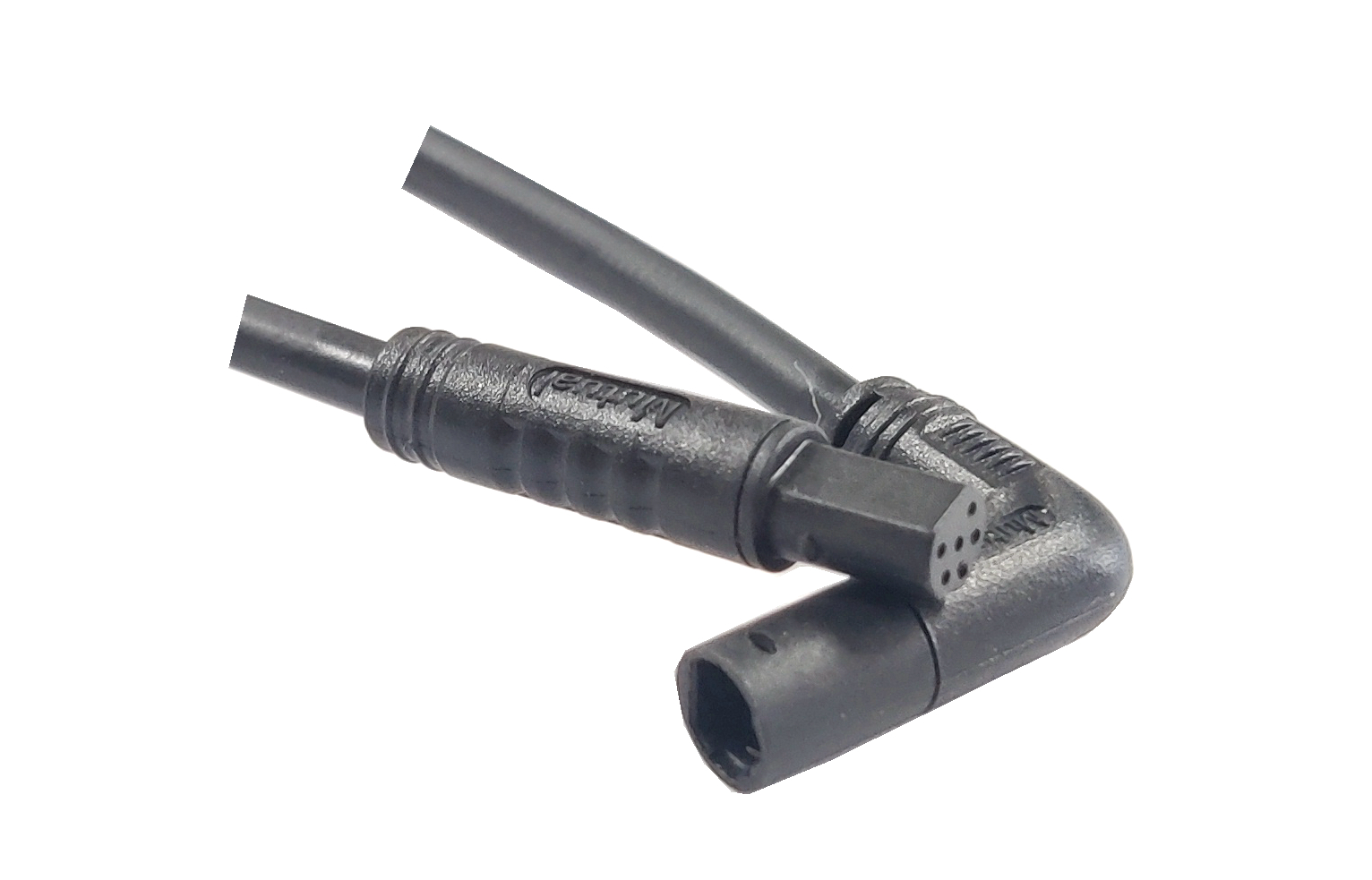

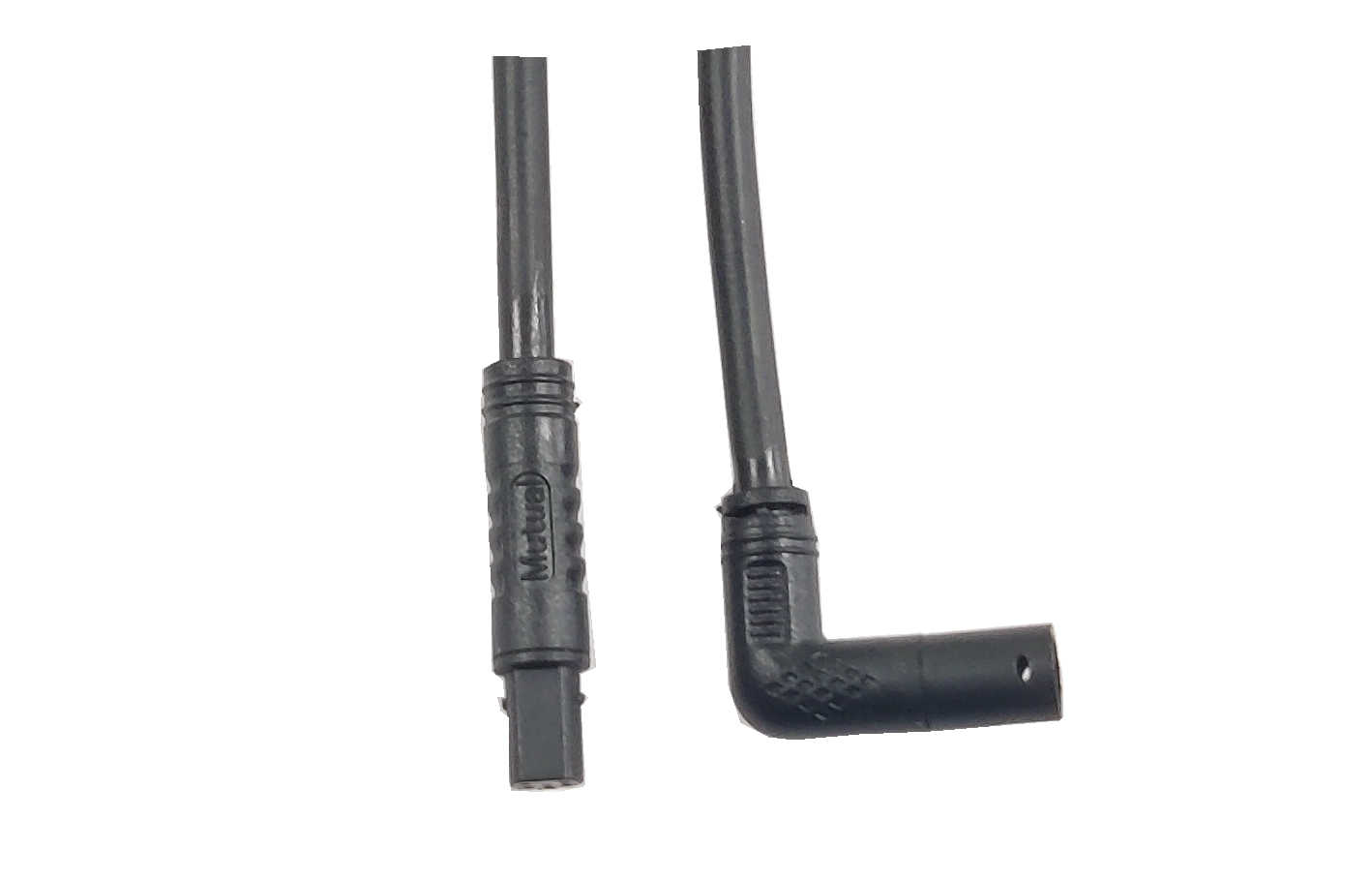

Ultra MINI L 6pin Signal Connector 90 degree

This is the 6 pin MINI L waterproof connector,with ULTRA small diameter It can be custom as extention cable,Y splitter for e-scooter usages and many other designs.Our standard cable diameter is 3.7mm and 4mm.IP67 of water resistant level.
Availability:
Quantity:
Inquire Add to Basket

sharethis sharing button

  • HT-F-MINI L

Rated Voltage
36/48V
Rated Current2A
Withstanding Voltage500V
Insulation Resistance≥20MΩ
Contact Resistance≤10mΩ
Mating TypeInsertion Force:80N Max,Extraction 30N Min
Mating Cycles200Times
Operation Temperature-25℃~+80℃
Protection DegreeIP67
External Diameter6.4mm
Mating Length49.5mm
Contact MaterialCopper alloy plated with gold which conforms to military standard
Wire Section0.14mm²/0.20mm²

L-shaped 6 wire waterproof cable mini scooter
