L0120 Motorcycle motor connector

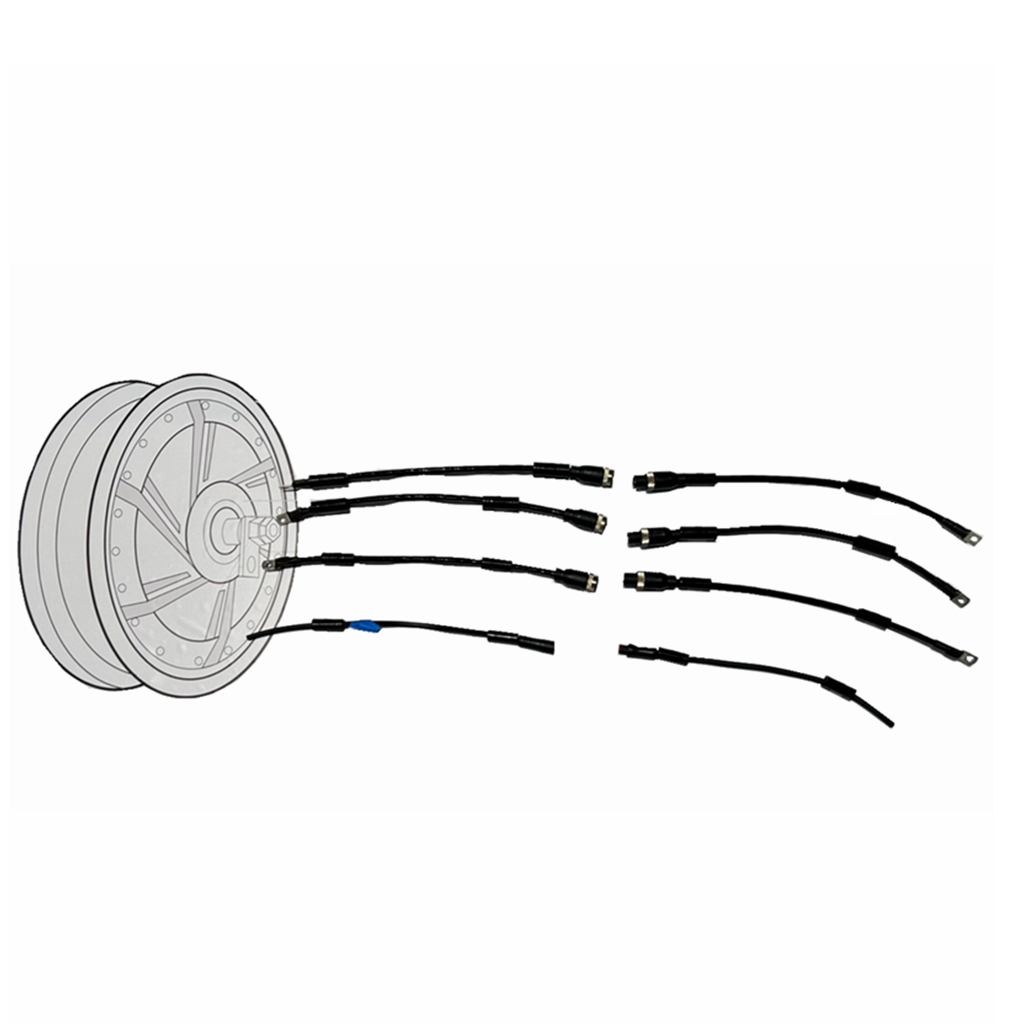

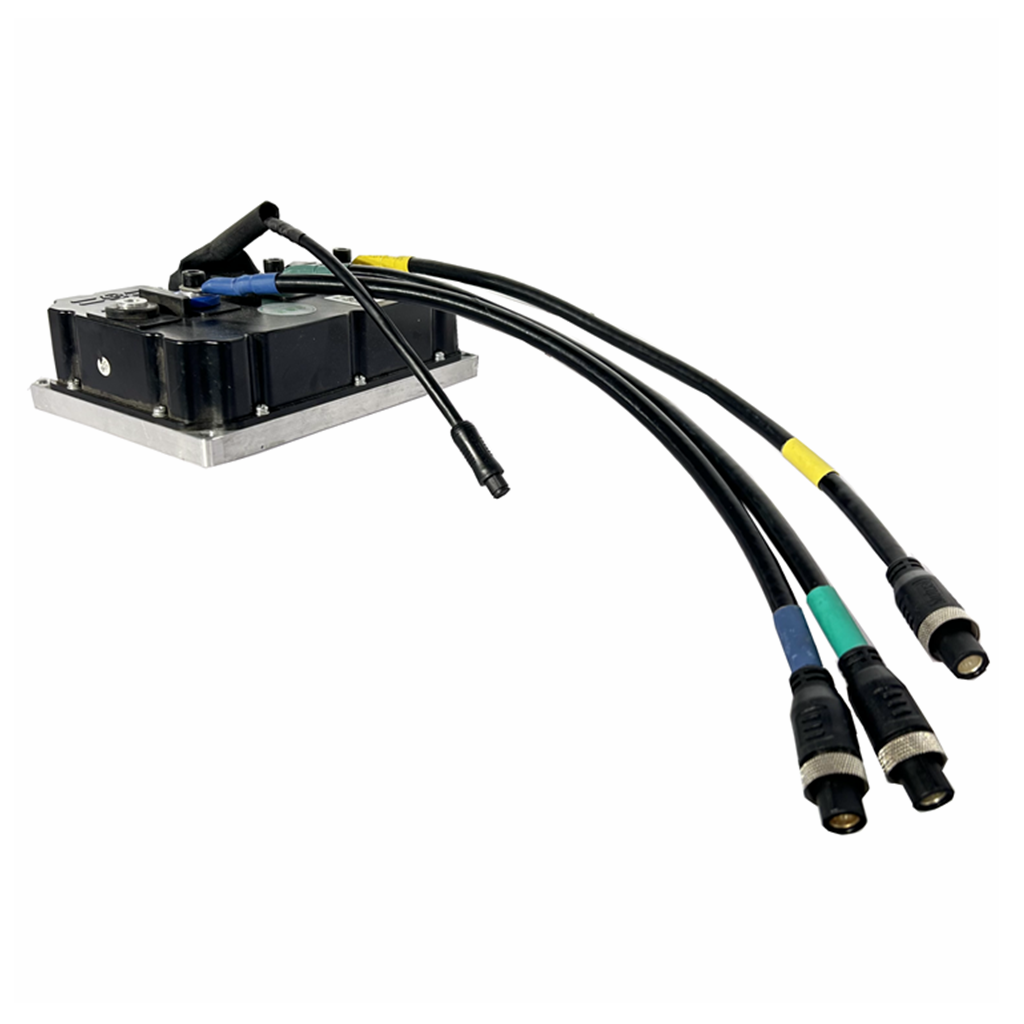

Motorcycle motor connector, waterproof male and female connector.To replace of tradition OT ring with easy maintenance.
Availability:
Quantity:
Inquire Add to Basket

sharethis sharing button

  • HT-F-L0120

Rated Voltage
0-96V
Rated Current120A
Withstanding Voltage700V
Insulation Resistance≥20MΩ
Contact Resistance≤10mΩ
Mating TypeDirectly insert
Mating Cycles100Times
Operation Temperature-25℃~+80℃
Protection DegreeIP67
External Diameter19.6mm
Mating Length87mm
Contact Material MaleGB HPB-62-1 Gold plated
Contact Material FemaleGB QSN6.5-0.1 Gold plated
Locating part
Nylon PA66+30% fiberglass
Wire Section16mm²

L0120A
